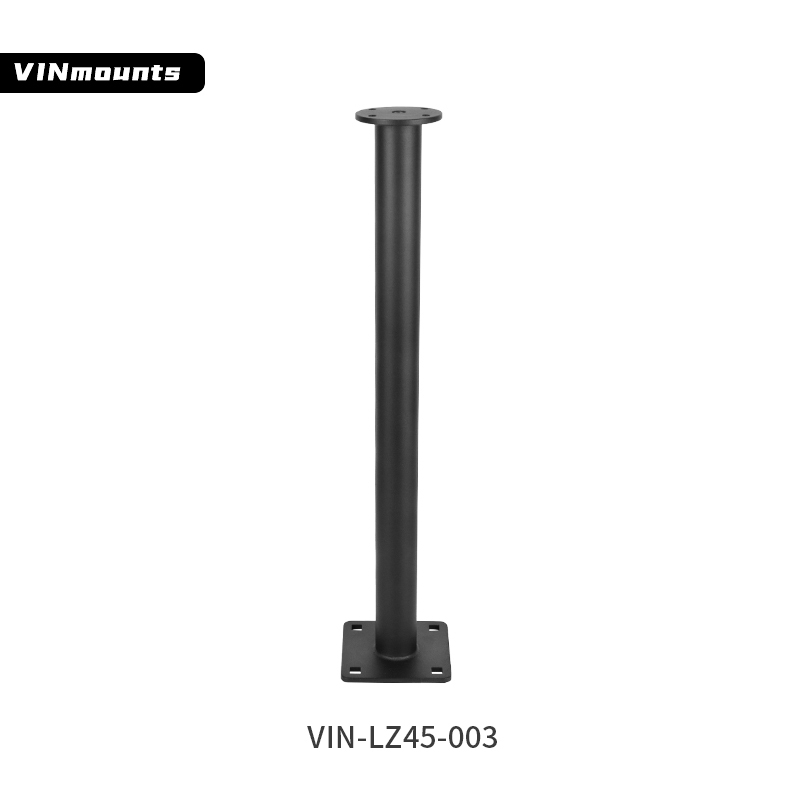

VINmounts Stainless steel 304 and Black powder coating Anti-corrosion Marine Fish detector display column bracket adapts to 1"/1.5" ball head/B"/C"/D" size VIN-LZ45-003

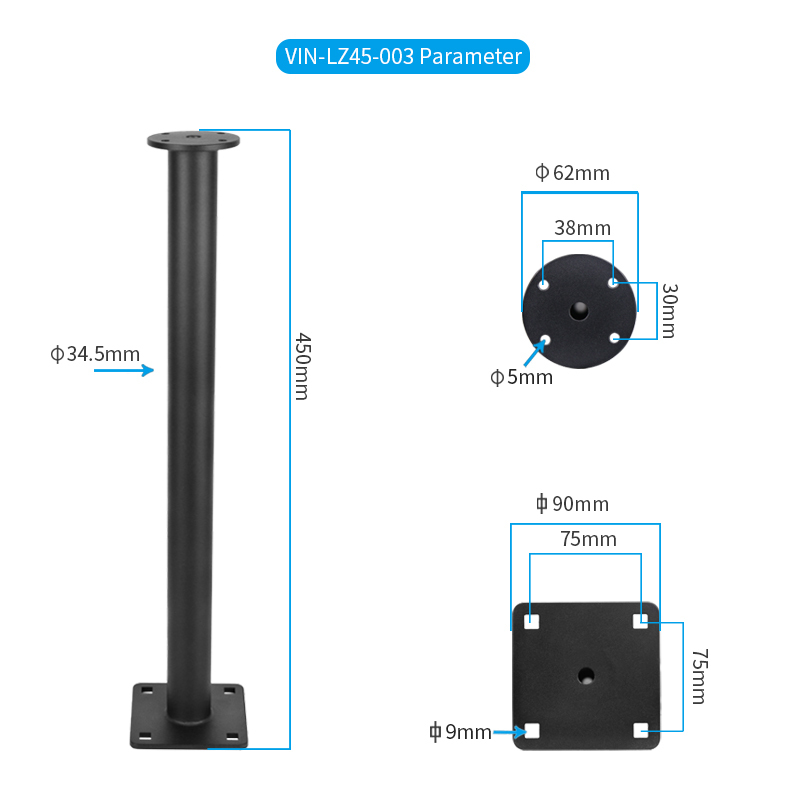

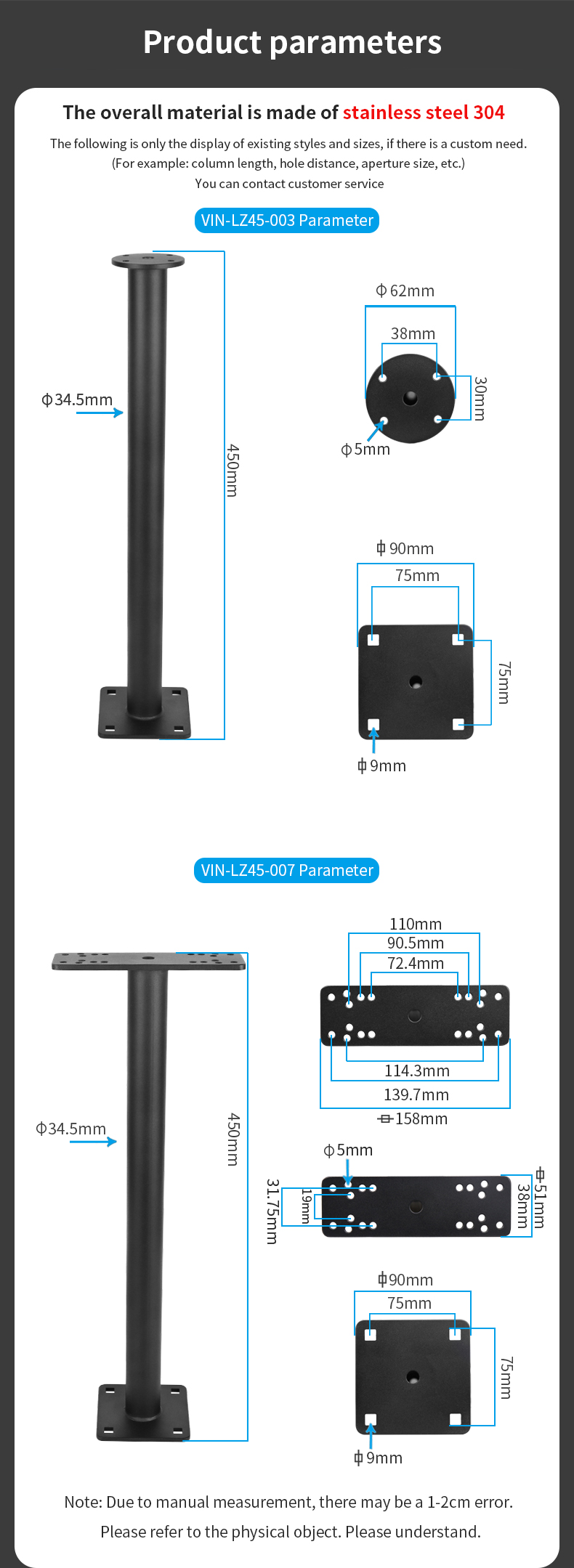

Key Specifications

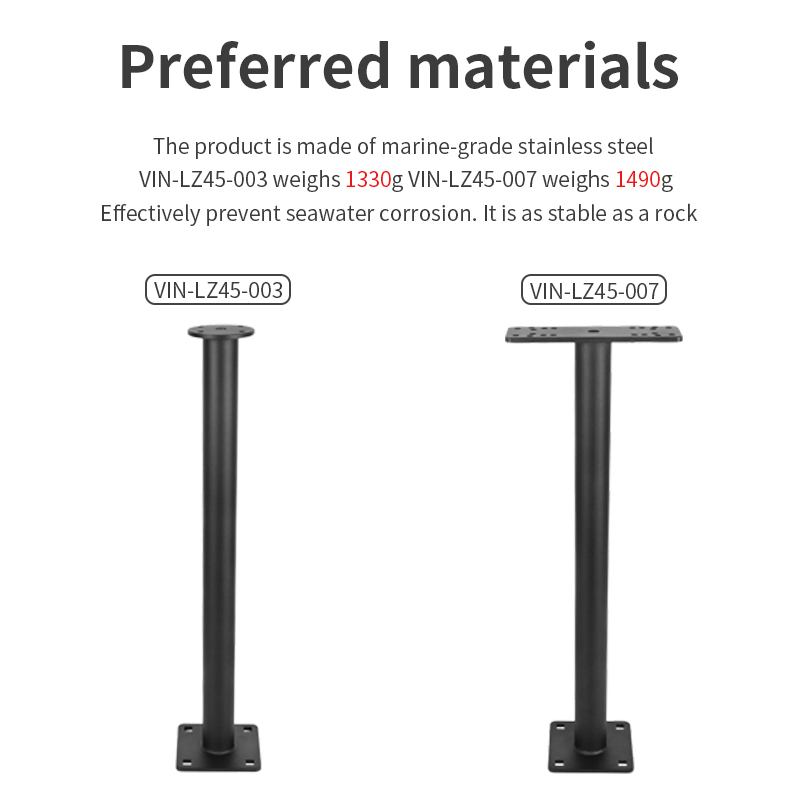

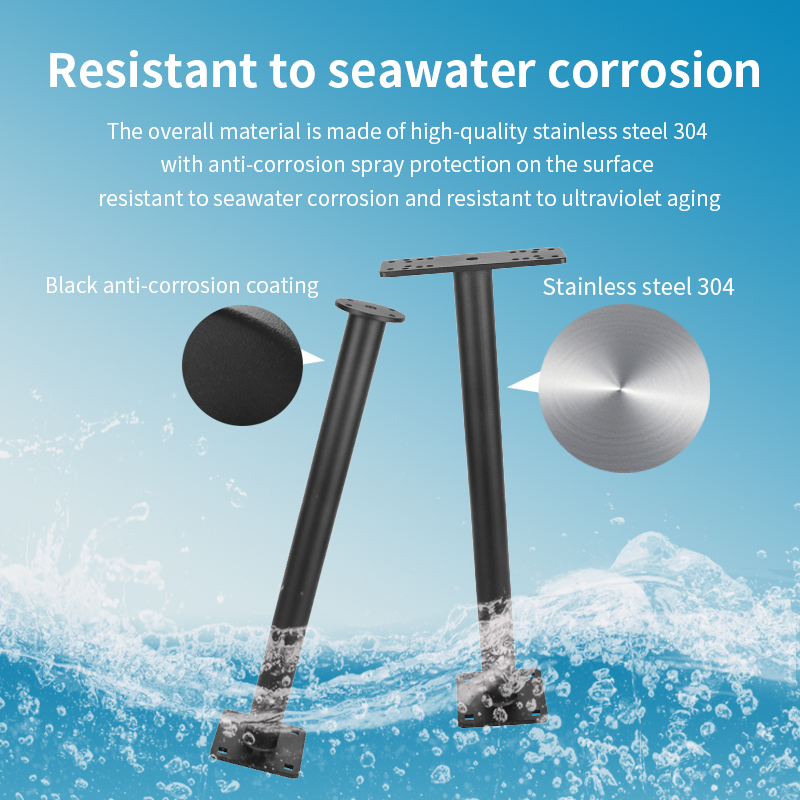

• Material: AISI 304 stainless steel base with black electrostatic powder coating for IP67-rated saltwater corrosion resistance.
• Compatibility: Fits 1"/1.5" ball heads and Type B/C/D mounts (supports most fish finders, chartplotters, and marine displays).
• Load Capacity: Holds up to 3.5 kg (7.7 lbs) with reinforced joints.
• Adjustability: 360° swivel rotation + ±15° tilt adjustment via heavy-duty locking knobs.
• Certifications: Compliant with EN ISO 9227 (corrosion testing) and IEC 60945 (marine electronic mounting standards).

Applications

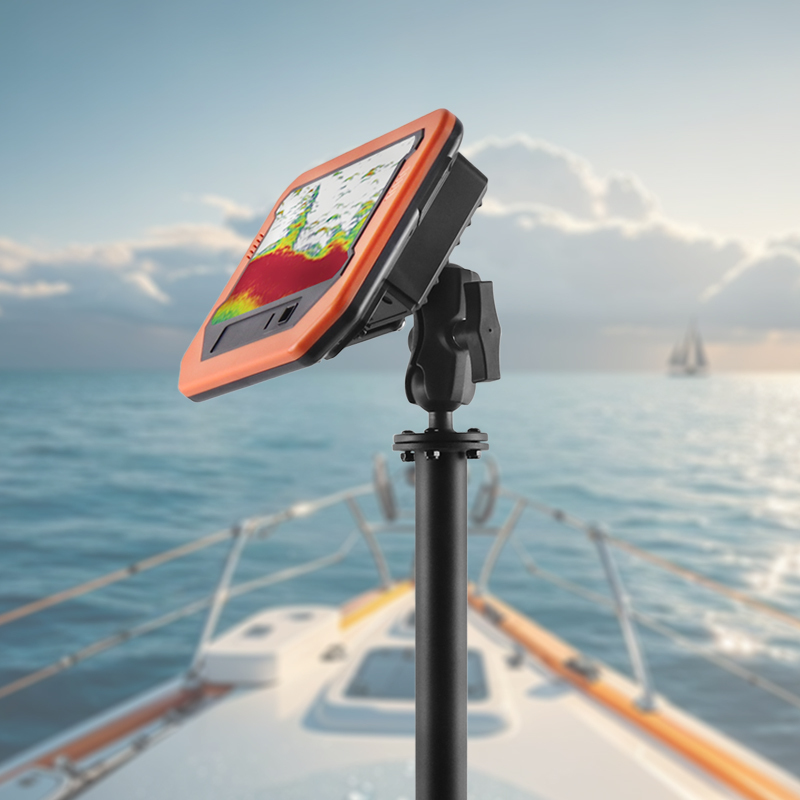

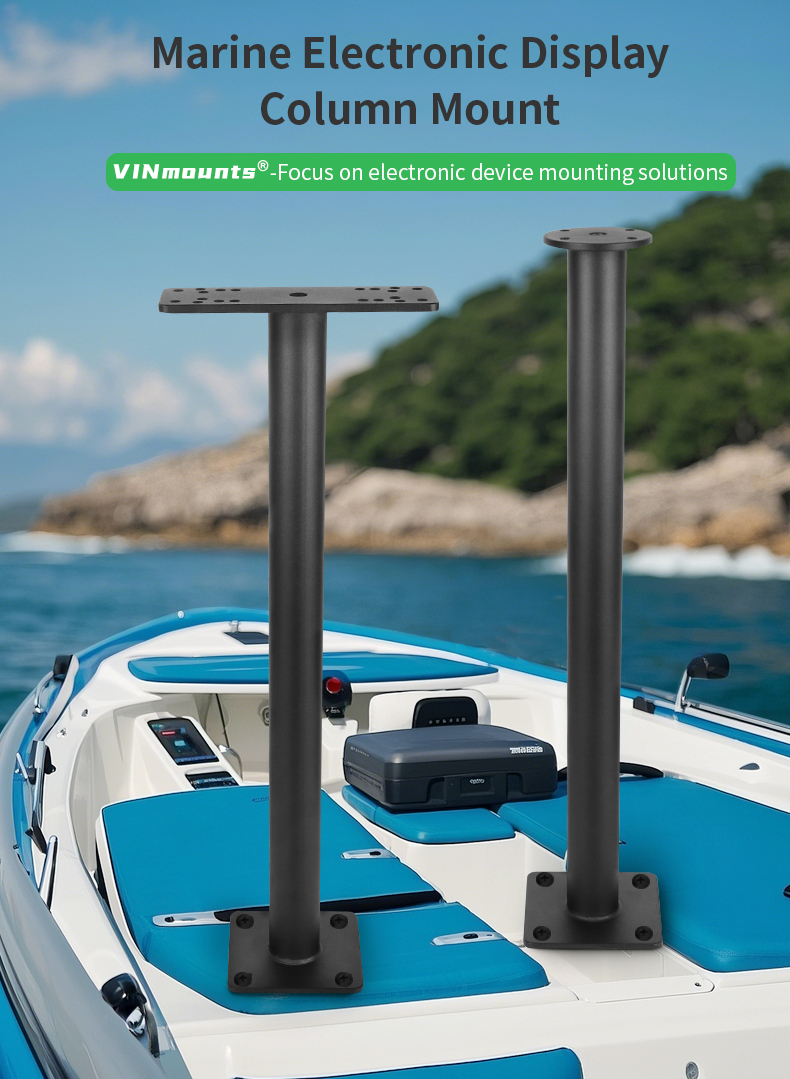

◼ Securely mount fish finders, sonar displays, or radar screens on fishing boats, yachts, or sailboats. ◼ Ideal for marine navigation systems, chartplotters, or autopilot control panels. ◼ Compatible with Lowrance, Simrad, Garmin, Raymarine, and Humminbird devices.

Features & Benefits

✅ Military-Grade Durability: 304 stainless steel construction resists rust, UV degradation, and harsh marine environments.
✅ Tool-Free Installation: Includes 316 stainless steel mounting hardware with anti-vibration nylon washers for deck/rail/pole mounting.
✅ Shock Absorption: Integrated rubber dampeners reduce impact from waves and engine vibrations.
✅ All-Weather Design: Operates flawlessly in temperatures from -30°C to 80°C (-22°F to 176°F).

Package Includes

▷ 1× VIN-LZ45-003 Display Bracket (pre-assembled)
▷ 1× Dual-Size Quick-release Ball Head Adapter (1"/1.5")
▷ 4× 316 Stainless Steel Bolts with Sealing Gaskets
▷ 1× Anti-Loosening Locknut Set
